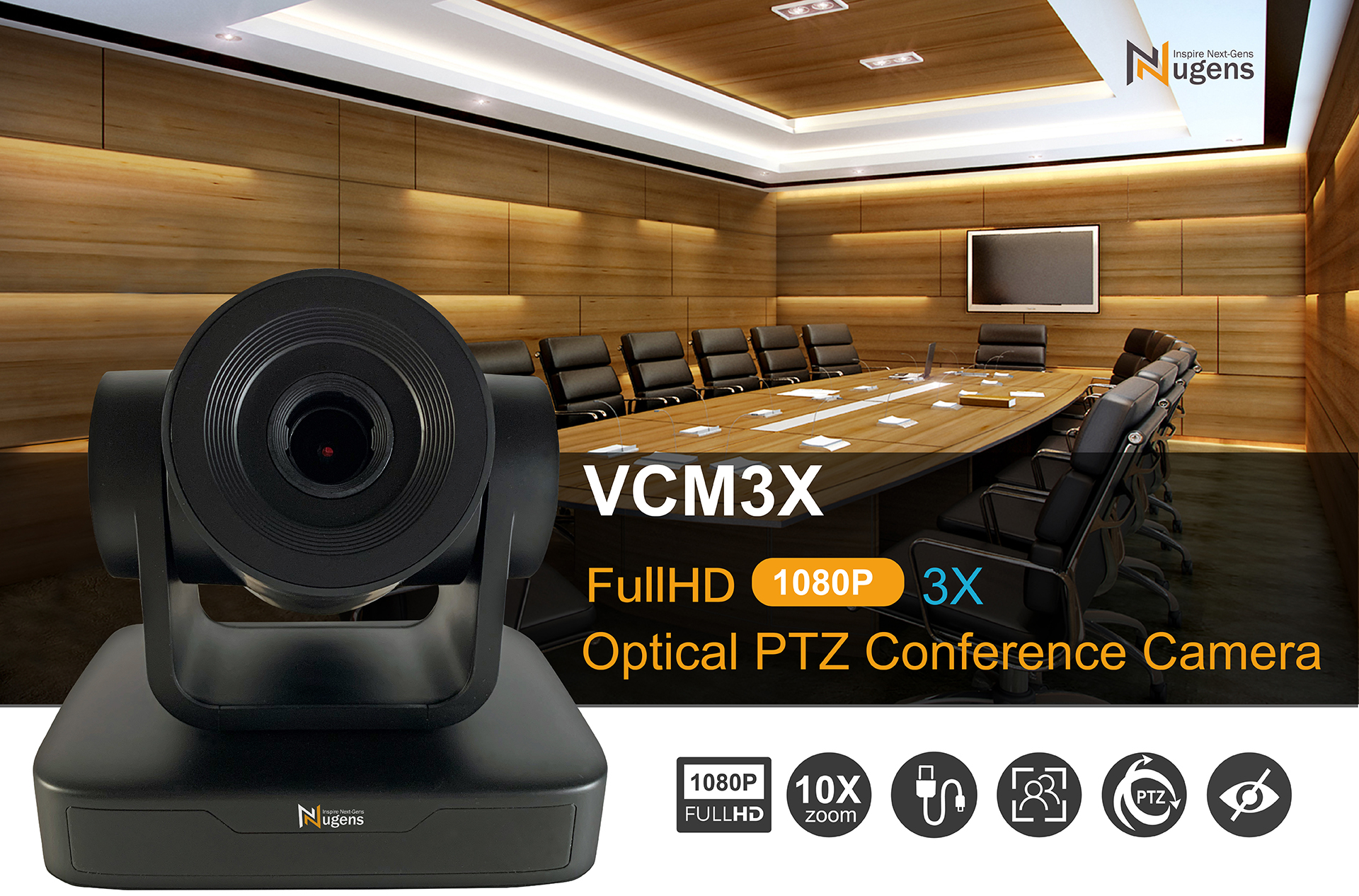

Nugens VCM3X

3X Optical PTZ Conference Camera

  • FREE CamSwitcherPro – A video tool software developed by Nugens.
  • Support wirelessly controls the camera via CamSwitcherPro App.
  • Selected the top image sensor – Sony, export high quality images.
  • 3X optical zoom, the highest resolution can reach 1920*1080, effective pixels 2.07M.
  • By using the high-precision drive mechanism makes the pan-tilt rotation quieter, stable and can quickly adjust to the specified position.
  • Professional PTZ (Pan-Tilt-Zoom) - the vertical adjustment angle is about 30°, the horizontal adjustment angle is about 170°.
  • Support 10 preset positions with provided remote controller.
  • Support VISCA, PELCO-D and RS422/RS485 control
  • Built-in 1/4-20UNC, support all kinds of standard camera tripods.
  • Windows 10 USB plug & play design – no driver needed.
  • Compatible with most of the video conferencing platforms, such as Google Meet, Microsoft Teams, Zoom, Skype, WebEx, Polycom, and WhatsApp.
  • Suitable for small and medium-sized meeting rooms
VCM1000 10X Optical PTZ Conference Camera

VCM3X Selected the top image sensor – Sony, export high quality images.10x optical zoom, the highest resolution can reach 1920*1080, effective pixels 2.07M.Professional PTZ (Pan-Tilt-Zoom) - the vertical adjustment angle is about 30°, the horizontal adjustment angle is about 170°. Suitable for small and medium-sized meeting rooms

Preset Positions

Preset Positions

You can preset 10 positions with different angles, when there is different people in the meeting or event that need to give a speech, Nugens VCM1000 is able to change the position immediately and adjust the angle with Zoom In/Out function.

Optical Zoom

Optical Zoom

With 10X/3X optical zoom lens, you can zoom in for a bigger image with excellent image quality.

HD Resolution

HD Resolution

Using selected premium sensor of Sony, providing full HD 1080P; the effective pixel is 2.07M, provide better image capture and output, allowing you to have a higher quality picture.

VCM1000視訊

Anti-Peep Cover/Ultra Quiet Design

When speaking to video call, we are worried about being peeped by hackers. The Nugens 10X/3X PTZ camera is equipped with a lens protection cover that can be covered when not in use to prevent peeping.
By using a high-precision stepping drive mechanism makes the pan-tilt rotation quieter, stable and can quickly rotate to the appointed position.
Professional PTZ - the vertical adjustment angle is ± 30°, the horizontal adjustment angle is ±170°.

VCM1000 Viewing angle
VCM1000 Spin
model

Lightweight & Portable

16 x 12 x 14cm | 0.8kg
It has a slimmer design that takes up less overall space. Support multiple installation options: simply put it on a table, installed on a tripod or hang it upside down from the ceiling.

Mainstream Conferencing Software

Compatible Mainstream Conferencing Software

Supports current mainstream video conferencing and live broadcast platforms, such as Youtube, Facebook, Zoom, Webex, Google Meet, Skype, Line, Wechat and other software.

CamSwitcher NuRemote

Remotely Control

With the NuRemoteApp, you can control the PC via mobile phone or tablet and connect to Nugens software such as CamSwitcherPro, and SmartScheduler Advertising Software. The mobile device can remotely control Nugens devices such as PTZ camera, and speakerphone. NuRemoteApp uses Wi-Fi connection technology to install the software and app on the PC and mobile phone, simulate the mouse, keyboard and touchpad, and add shortcut keys such as direction keys, which can remotely control the PC without being limited by distance and angle. In this way, you can directly use your mobile phone or tablet to take pictures, video, resolution adjustment, image rotation, zoom, freeze images, brush annotation and other functions in the video conference, making the conference control more flexible.

Download

Powerful and Complete

Snapshot / Video Recording / Livestream / Conference / Whiteboard / Document Camera
e-Learning / Conferencing / Video Tutorial / Live Stream / e-Education

  • Large preview window with user-friendly graphical interface.
  • Able to choose preferred resolution for preview and settings – Support 4K Ultra-HD
  • Capture HD images, HD videos, Time-Lapse, Picture-in-Picture and Burst.
  • Time-Lapse Comparison, Annotation and Animated Title
  • Support RTMP Live Stream (YouTube or Facebook)
  • Built-in Whiteboard and Blackboard
  • Support Screen-Sharing and Virtual Camera
  • Supported Operating System | Windows and macOS
Windows10 Download
macOs Download

SCHEMATIC VIEW

VCM1000 SCHEMATIC VIEW
VCM1000 SCHEMATIC VIEW
VCM1000 SCHEMATIC VIEW

Specifications

Camera Parameter

Model VCM3X VCM1000
Sensor 1/2.9-inch-hight quality HD CMOS sensor
Effective Pixels 2.07 MP、16:9
Video Format
MJPEG: YUY2:
1920*1080 1280*720p
1280*720p 640*480
800*600 640*360
720*480
640*360
320*240
View Angel 34.1°~85 8.8°~66
F Value f=3.35mm~10.05mm f=4.34mm ~ 41.66mm
AV F1.7~3.0 F1.85-F2.43
Optical Zoom 3x 10x
White Balance Auto/Manual/One Push(2400K~7100K)
Focus Auto/Manual
Aperture Auto/Manual
BLC on/off
Video adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR >55dB
DNR 2D & 3D DNR
Minimum Illumination 0.5 Lux (F1.8, AGC ON)

Input/Output Interface

Video Interfaces USB2.0 (type A)
Video Compression Format MJPEG、YUY2、H.264、H2.65
Control Signal Interface RS232、RS485
Control Protocol VISCA/PelcoD/Pelco-P
Power Interface DC12V

PTZ Parameter

Pan Rotation -170°~+170
Tilt Rotation -30°~+30°
Pan Control Speed 0.1~60°/sec
Tilt Control Speed 0.1~40°/sec
Preset Speed Pan:48°/sec,Tilt:38°/sec
Preset Number 255 presets (10 presets by remote controller)

Other Parameter

Input Voltage 12V
Input Current 0.42A(max)
Consumption 5W(max)
Store Temperature -40°~+70°
Store Humidity 20%~90%
Working Temperature -10°~+50°
Working Humidity 20%~80%
Product Dimension 156.8mm x 112.6mm x 139.5mm
Product Weight 1kg
Accessory Power Supply,Remote Controller,USB cable,Ceiling mount bracket
