Snapshot / Video Recording / Livestream / Conference / Whiteboard / Document Camera
e-Learning / Conferencing / Video Tutorial / Live Stream / e-Education
Image Sensor | 1/2.7″HD color CMOS |
Effective pixel | 2.1 mega pixel(16:9) |
Horizontal Resolution | 1920x1080 1280x720 800x600 680x480 |
Zoom | 3x optical zoom |
Lens | TF=3.0-10.0mm |
Horizontal Angle | Near-end 90°~ Far-end 37° |
Gain control | Near-end 90°~ Far-end 37° |
Gain control | Auto/manual |
AFocus | Auto/manual |
SN ratio | ≥50dB |
Wide dynamic | D-WDR |
Shutter speed | 8 to 1/10000s (auto) |
Character generator | Built-in OSD Menu |
Preset position | IR remote control supports 9 presets,PELCO Protocol supports 256 presets |

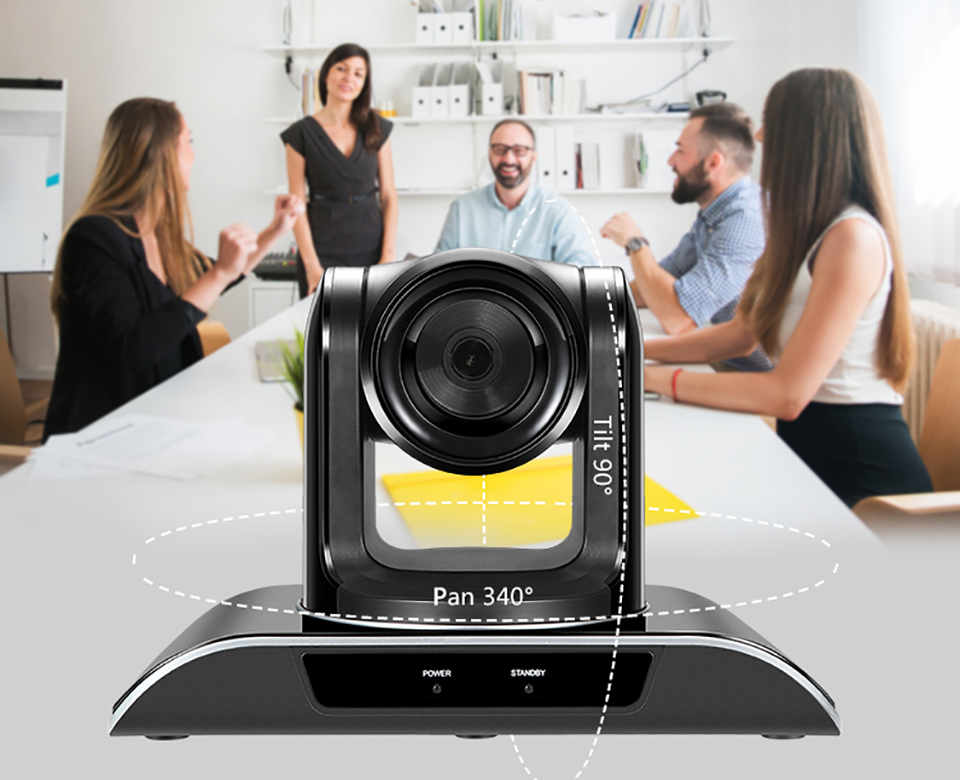

Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 0°~120°((max speed 60°/S) |
Pan/Tilt movement speed | 100°/s,80°/s |

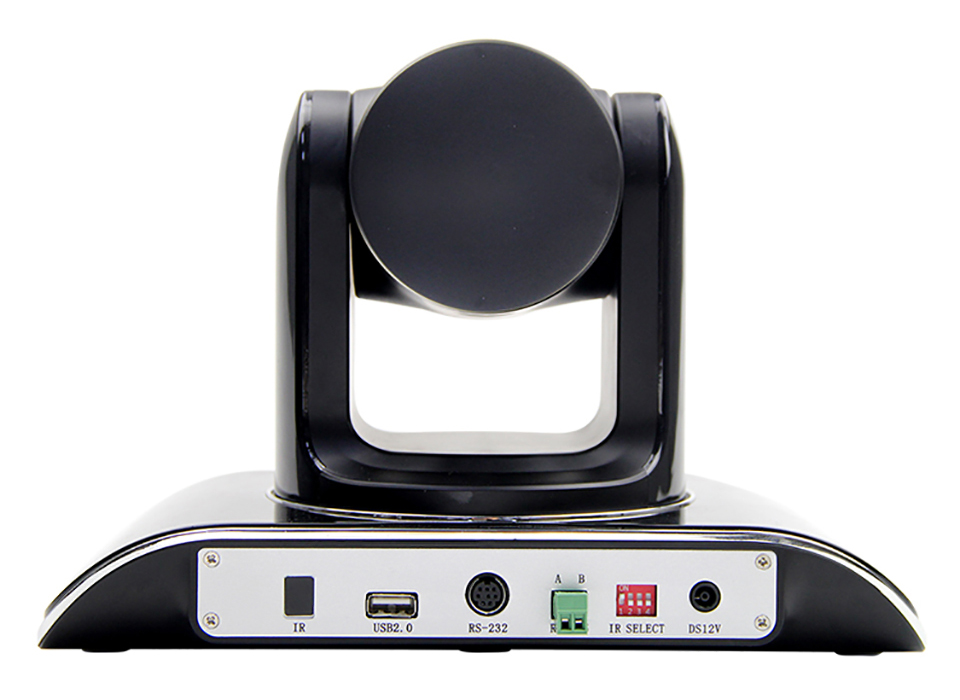

Control terminal | USB,RS-232C,RS-485 |
Control Protocol | VISCA,PELCO-D/P |
Video output pixel | 1080P 25/30,720P 25/ 30 |
Video output | USB2.0 |
Work temperature | - 10°C~ 50°C |
Storage temperature | - 20°C~ 60°C |
Baud rate | 2400/4800/9600bps |
Decoder | Built-in |
Address set | 0~255 |
Installation | Support desktop, wall mount and ceiling mounting |
Power supply | DC12V / 2A |
Power consumption | 12 W |
Net weight/Gross weight | 1.46kg/2.8kg |
Dimension(LXWXH) | 260*175*180mm /296*255*238mm (before after packing) |
Accessories | DC 12Vpower adaptor, IR remote control, manual, RS232 cable, USB cable, Brackets & screws |
